3 BX

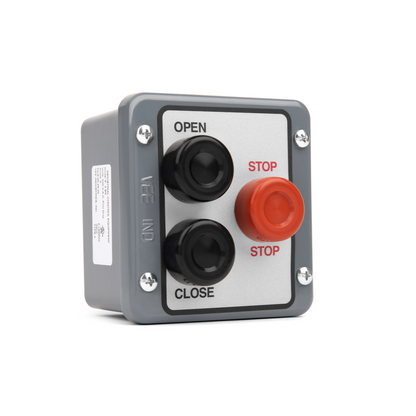

This heavy-duty exterior mount station is designed for reliable operation in demanding environments. Featuring a durable, outdoor mountable enclosure, it provides precise control over machinery and equipment with clearly labeled buttons for Open, Close, and Stop functions.

Configuration

• Three single pole momentary contact buttons
• One form B (N.C.) and two form A (N.O.) contacts
• CUL
• Rated 3 amp, 240VAC
• Meets NEMA 4 requirements when installed with liquid-tight conduit.
• U.L. ratings meet 1, 2, 3R 5, 6, 12, 13 and ICS NEMA standards
• Equipped for interior or exterior industrial use
• Tamper resistant cover screws require a specialized tool for removal, deterring           interference.

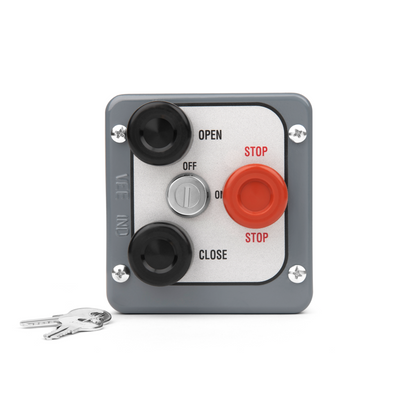

Key Activated Unit

• A secure lock mechanism ensures only authorized personnel can operate the               system. Until the key is used to activate the system the buttons remain                       inoperable, efficiently restricting entry.
