3 BXL

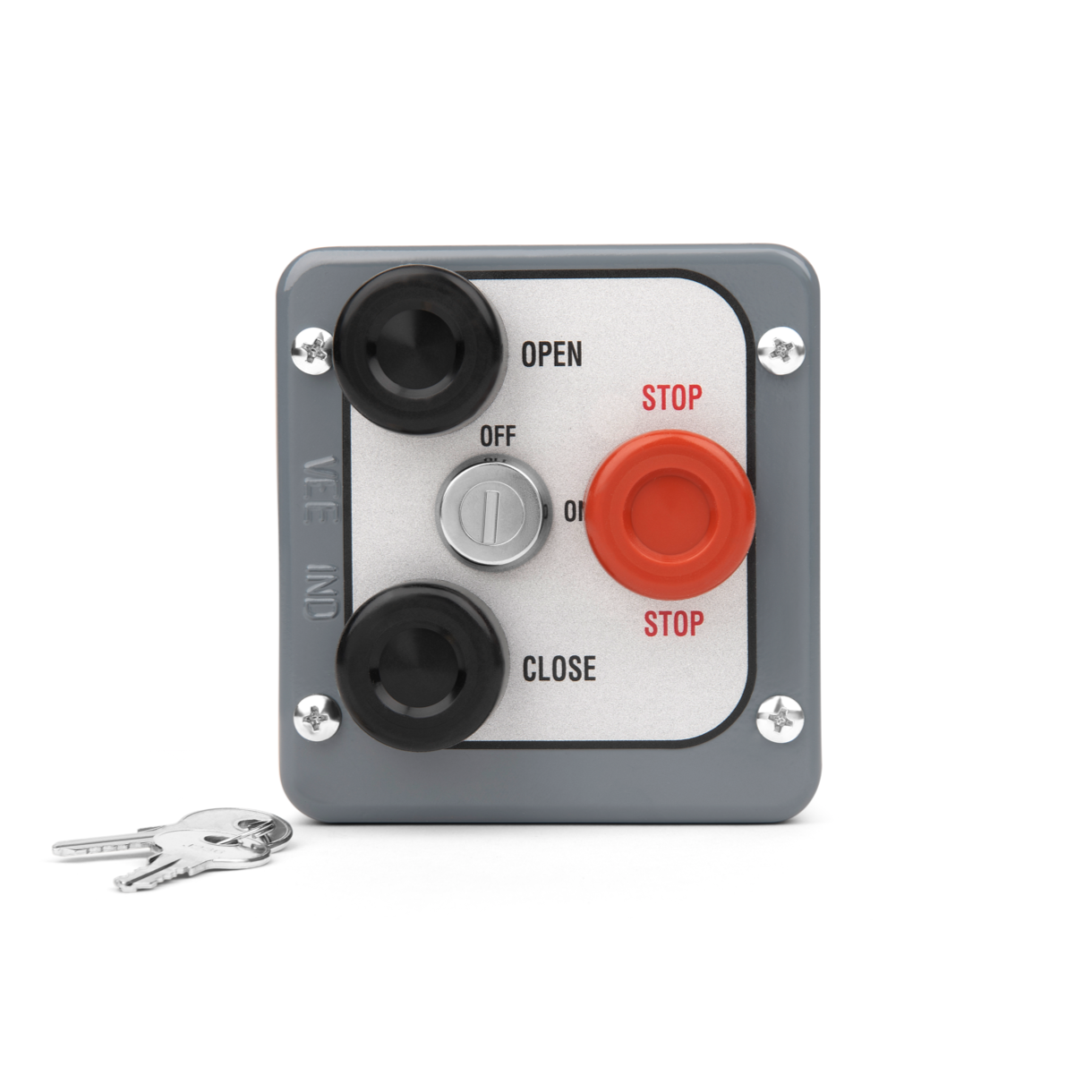

This heavy-duty exterior mount station is designed for reliable operation in demanding environments. A secure lock mechanism ensures only authorized personnel can operate the system. Until the key is used to activate the system the buttons remain inoperable, efficiently restricting entry. Featuring a durable, outdoor mountable enclosure, it provides precise control over machinery and equipment with clearly labeled buttons for Open, Close, and Stop functions.

Configuration

• Three single pole, momentary contact push buttons
• One N.C. and two N.O. contacts
• One form B and two form A contacts
• Momentary contact
• Key activated
• CUL
• Rated for 3A at 240VAC
• Meets NEMA 4 requirements when installed with liquid-tight conduit.
• U.L. ratings meet 1, 2, 3R 5, 6, 12, 13 and ICS NEMA standards
• Equipped for interior or exterior industrial use
• Tamper resistant cover screws require a specialized tool for removal, deterring           interference.
