PMVP-1

PMVP-1

$40.00 USD
$40.00 USD
Sale Sold out

Want more security that a conventional key switch offers?
we recommend the virtually "pick proof" PMVP-1 unit. The ace type cylinder offers more security than a traditional flat key unit.
  • For residential use

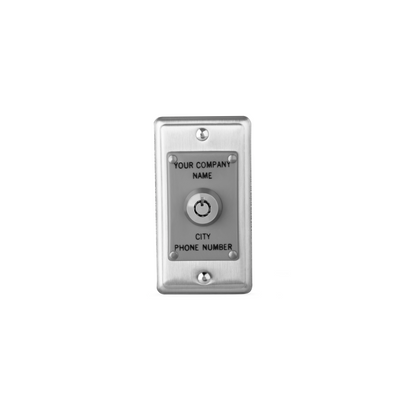

  • Call 561-732-1083 to order with imprinted text
  • Riveted to Stainless Steel handy box cover, dimensions: 4 3/16” x 2 5/16”
  • Zinc Alloy Die Casted Housing and Cylinder Chrome Plated
  • Tubular Key Chrome Plated,
  • 2 Keys Maintaining Contact Spade Terminal,
  • 2 Terminals
  • 50 Key Codes Available
  • Spring Return Type (Spring Loaded for Momentary Contact, Off-On Type)
  • Recommended for Multiple Dwellings.
  • Supplied with 2 anchor nails and mounting screws for handy box.
SPECIFICATIONS:
  • Contact Rating: 4A 125V AC, 2A 250V AC.
  • Contact Resistance: 10 MILLI-OHMS MAX.
  • Insulation Resistance: 500 MEG-OHMS MIN. (500V DC)
  • Dielectric Strength: 1500V AC - 1 Minute.
  • Not compatible with digital garage door operators
